Технические характеристики :

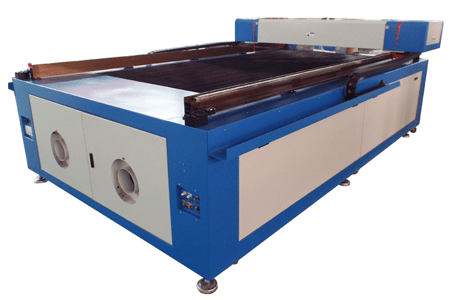

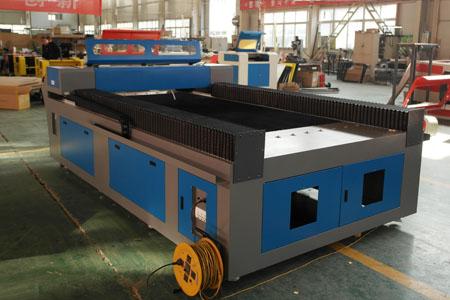

Model:G2513*260W
Power supply | AC220 |
Laser type | Hermetic CO2 glass tube 260W |
Worktable | Alumium knife worktable and honeycomb |
Cutting thickness | Plywood 21mm .acrylic 12mm tetolite and glass fiber sheet 10mm ,carton fiber 12mm .stainless steel 3mm .carbon steel 3mm |
Applicable Materials | Acrylic, bamboo,wood,MDF, plywood, leather,rubber,plastic,paper, cloth, stone, steel etc.. |
Max moving speed | 25m/min |
Laser energy control | 1-100% set by hand or software |
Min shaping character | Character 3*3 mm, letter 2*2 mm |
Operating temperature | 0°C-45°C |
Data transfer interface | USB /Udisk/internet |
System environment | WINDOWS 2000/ XP/Vista/Win7/Win8/WIN10 |
Cooling way | Water cooling and protection system |
Graphic format supported | NMP JGP PNG DXF .The file which CorelDraw、AutoCad、CaDian,Illustrator and laserwork can identify |
Memory | 256 MB |
Color Separation | Separation of cutting up to 256 colors |
Package Inclusion | machine, focus ruler, Software CD, user manual book, Air pump/pipe, Power cables, USB cables, water pump/pipe,exhaust fan/pipe, silicone glue, Tools bag |
Dimensions | 3400*1860*1100mm |
Dimensions(package) | 3800*2290*1545mm |
Net /Gross Weight | 900kg/1000kg |
