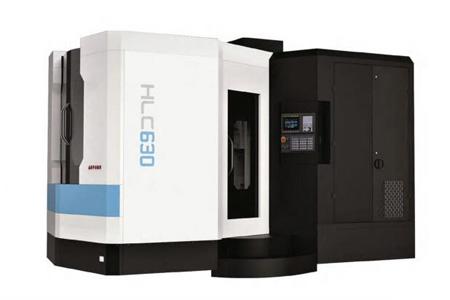

Горизонтально фрезерный обрабатывающий центр HLC500: Высококачественное оборудование для прецизионной обработки
ПАРАМЕТРЫ ГОРИЗОНТАЛЬНО ФРЕЗЕРНОГО ОБРАБАТЫВАЮЩЕГО ЦЕНТРА HLC500 / HLC630 / HLC630S
Model Parameters | HLC500 | HLC500S | HLC630 | HLC630S |
Table Size (mm) | 500x6C0 | 500×600 | 630×630 | 630×700 |
Max Loading Weight (kg) | 500 | 600 | 1500 | 950 |
Table dividing (°) | 1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
Number-width x distance (mm) | 6x14x80 | 6x14x80 | 5x18x125 | 5x18x125 |
XY/Z Travel (mm) | 800/600/600 | 800/6201600 | 1000/800/900 | 1050/750/900 |
Rapid speed(X /Y /Z) m/min | 20/15/20 | 20/15/20 | 20/15/20 | 20/15/20 |
X Y Z cutting speed (mm/min) | 1-8000 | 1-8000 | 1-8000 | 1-8000 |
Spindle center line to table surface (mm) | 50-650 | 40-640 | 0-800 | 120-870 |
Spindle nose to table center (mm) | 150-750 | 185~785(BT40)
158-758(BT50) |
200~1100 | 130~1030 |
Spindle speed ( rpm ) | 6000 | 6000/8000 | 6000 | 6000 |
Spindle power ( kw) | 11/15 | 11/15 | 15/18.5 | 15/18.5 |
Tool holder type | BT50 | BT50 | BT50 | BT5O |
Pull stud | BT50~45° | BT40-45°
BT50~45° |
BT50-45° | BT50-45° |
ATC capacity hold | 24;32/40 | 24;32/40 | 24;32/40 | 24;32/40 |
Tool change time ( s ) | 3.5 | 3.5 | 3.5 | 3.5 |
Max tool weight (kg) | 25 | 25 | 25 | 25 |
Max diameter of tool (mm) | Φ110/Φ220 | Φ110/Φ220 | Φ110/Φ220 | Φ110/Φ220 |
Air pressure (MPa) | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
Machine weight (kg) | 10800 | 121500 | 13000 | 13500 |
Machine overall size ( L x W x H ) mm | 3800x 3000x 3020 | 3800x 2800x 2900 | 4300x 3150x 3800 | 4300x 3150x 3600 |
HLC800 | HLC1000 | HLC1000S | HLC1250 | HLC1500 |
800×800 | 1000×1000 | 1000×1000 | 1250×1250 | 1500×1500 |
2000/3000 | 5000 | 1500 | 7000/5000 | 8000 |
1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
1°x360/0. .001°
continuous |
5x22x160 | 7x22x130 | 7x22x130 | 7x22x150 | 5x28x275 |
1200/900/900 | 1800/1400/1400 | 1600/1000/1000 | 1800/1400/1400 | 2500/1500/2000 |
20/15/20 | 16/12/16 | 16/12/16 | 16/12/16 | 9/9/9 |
1-8000 | 1-~5000 | 1-5000 | 1-5000 | 1-5000 |
0-900 | 0~1400 | 120~1120 | 0~1400 | 50~1550 |
200~1100 | 250~1650 | 200~1200 | 250~1650 | 610~2610 |
6000 | 6000 | 6000 | 6000 | 6000 |
15/18.5 | 18.5/22 | 18.5/22 | 18.5/22 | 18.5/22 |
BT50 | BT50 | BT50 | BT50 | BT50 |
BT50~45° | BT50~45° | BT50~45° | BT50~45° | BT50~45° |
24;32/40 | 30;3240 | 30;3240 | 30;3240 | 30;3240 |
3.5 | 7.5 | 7.5 | 7.5 | 7.5 |
25 | 25 | 25 | 25 | 25 |
Φ110/Φ220 | Φ125/Φ240 | Φ125/Φ240 | Φ125/Φ240 | Φ125/Φ240 |
0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
14000 | 26000 | 20000 | 28000 | 34000 |
4300x3150x3900 | 7400x 5900x 3820 | 6400x 5500x 3820 | 7400x5900x 3820 | 8200x6900x5000 |
Model Parameters | HLC630SAPC | HLC630APC |
Table Size (mm) | 630×700 | 630×630 |
Table gty | 2 | 2 |
Table dividing type (°) | 1°x360/0.001° | 1°x360/0.001° |
Max Loading Weight (kg) | 950×2 | 800×2 |
Number-width x distance (mm) | 5x18x125 | 5x18x125 |
Max workpiece size (mm) | Φ960×800 | Φ1000×900 |
3 axis travel(X/Y/Z) (mm) | 1050/750/900 | 1100/800/1100 |
3axis feeding speed(m/min) | 20 | 24 |
Spindle center line to table surface (mm) | 0~750 | 50~850 |
Spindle nose to table center (mm) | 130~1030 | 125~1225 |
Spindie taper | BT50 | BT50 |
Max. spindle speed (R/MIN) | 6000 | 6000 |
Main motor power (KW) | 15/18.5 | 15/18.5 |
ATC Type, Tool capacity | disc type 30T(optional: chain type 32T/40T) | |
3 aixs positioning accuracy/Repeated positioning accuracy (mm) | 0.018/0.010 | 0.015/0.008 |
Table dividing accuracy/Repeated accuracy | 15/5 | 10/3 |
