Технические характеристики :

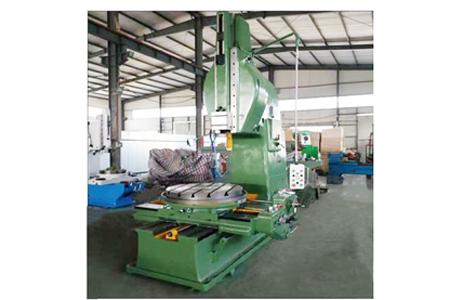

ITEM | Unit | B5050 |
Maximum slotting length of ram | mm | 500 |
Maximum weight of workpiece | kg | 2000 |
Ram tilt angle (left and right direction) | o | ±10 |
Diameter of worktable | mm | 1000 |
Ram adjustment distance | mm | 430 |
Distance from tool support surface to forearm of bed | mm | 990 |
The distance between the work surface and the lower end of the carriage | mm | 740 |
Longitudinal stroke of worktable | mm | 1000 |
Transverse travel of worktable | mm | 660 |
Ram reciprocation times | times/ min | 9,12.5,18.25,36,50 |
Vertical and horizontal motor feed range of worktable mm/ram reciprocating once | mm | 0.1,0.2,0.30.4,0.6,1.2 |
The range of the rotary motorized feed of the worktable is divided into one ram reciprocating once | dr/per | 3,6,9,12,18,36 |
Maximum cutting force | n | 16000 |
Fast-moving motor | r.p.m | 1.5kw 1440 |
Main drive motor | r.p.m | 7.5kw.1400 |
Cooling pump motor | r.p.m | 0.125kw 2800 |
Net weight of machine tool (approximately) | T | 10.3T |
Dimensions (length×width×height) | mm | 3480×2085*3307 |
