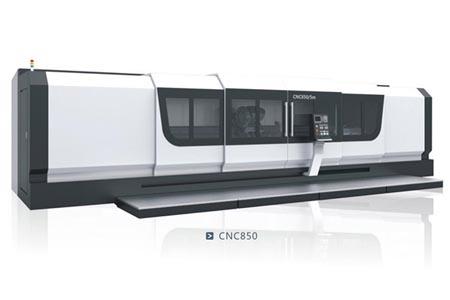

Высокоточный токарный станок с ЧПУ CNC630: Новое поколение точности и эффективности
Type | CNC630 | CNC850 | CNC1000 | CNC1250 | |
Main specification | Max swing over bed ( mm ) | ¢630 | ¢ 850 | ¢ 1000 | ¢ 1250 |
Max machining diameter ( mm) | ¢630 | ¢850 | ¢ 1000 | ¢ 1250 | |
Max swing over arriage ( mm ) | ¢430 | ¢630 | ¢850 | ¢1000 | |
Max weight of workpiece ( kg ) | 1000/1 500/2000/3000/4000/5000 | ||||
Max weight of workpiece ( kg ) | 2000 | 4000 | |||
Spindle | Spindle nose | ISO A2-11 | ISO A2-11 | ISO A2-15 | ISO A2-15 |
Diameter of spindle in front bearing ( mm ) | 160 | 160 | 200 | 200 | |
Spindle hole ( mm ) | 95 | 95 | 120 | 120 | |
Max. speed of spindle ( rpom ) | 2000 | 1500 | 1200 | 1200 | |
Power of spindle servo motor ( kw ) | 26.5 | 38 | 45 | 45 | |
Chuck diaetrthydraulic chuck is optioall | 15 | 18 | 20 | 20 | |
Tail stock (Hydraulic programmable tailstck is optional) | Diameter of tail stock ( mm ) | ¢180 | ¢180 | ¢200 | ¢200 |
Travel of tilstck ( mm ) | 160 | 160 | 200 | 200 | |
Taper of tilstock | MT6 | MT6 | MT6 | MT6 | |
Drive unit | Travel of X axis ( mm ) | 315 | 425 | 500 | 625 |
Tavel of Z axis (mm) | 1050/1550/2 100/3100/4100/5100 | ||||
Rapid traverse of X axis ( m/min ) | 10 (hard rail) / 20 (line rail) | ||||
Rapid traverse of Z axis ( m/min ) | 10 (hard rail) / 20 (line rail) | ||||
Feed rate of X axis ( m/min ) | 0.001-4000 | ||||
Feed rate of Z axis( m/min ) | 0.001-4000 | ||||

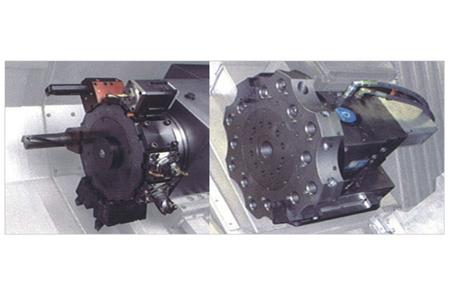

NC horizontal turret (Servo power turret is optional) | Tool position | 12/8 | 12/8 | 12/8 | 12/8 |
Section of tool shank ( mm ) | 25X25 | 32X32 | 40X40 | 40X40 | |
Diameter of boring bar ( mm ) | 32 | 40 | 50 | 50 | |
Choosing tool at the nearest distance | Yes | ||||
System configuration | CNC system | SIEMENS 828D or FANUC 0I-TF | |||
Servo motor for X axis | 27Nm | 38Nm | |||
Servo motor for Z axis | 27Nm | 38Nm | |||
Detecting unit | Optional | ||||
Grating scale | Optional | ||||
Encooder | Optional | ||||
Tool setting | Optional |
